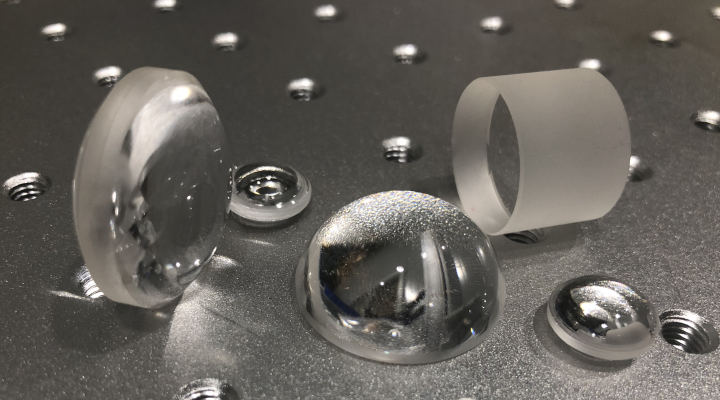

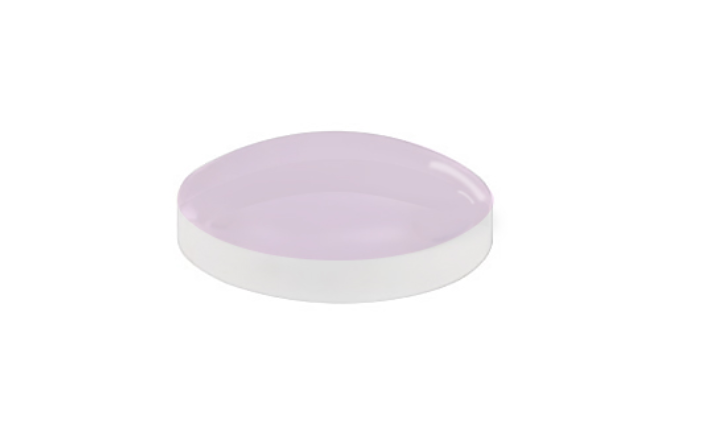

武汉镭星生产的平凸透镜通常使用符合RoHS标准的H-K9L(N-BK7) 或 紫外熔石英(UVFS)制成。它们可以用于聚焦准直光或者准直点光源。为了减少球差的引入，聚焦时准直光应该入射到透镜的曲面上，而准直时入射光应该入射到透镜的平面上。平凸透镜是由一个平面和一个球面组成，它们与其它透镜组合可形成成像系统，可应用在许多场合，包括望远镜、 瞄准镜、放大镜、光接收器和聚光镜等。
| 材料 | H-K9L，紫外熔石英，silica，CaF2 |
| 设计波长 | 632.8nm |
| 尺寸公差 | +0/-0.2mm |
| 厚度公差 | ±0.2mm |
| 光圈(@633nm) | 3 |
| 局部误差(@633nm) | 0.5 |
| 偏心度 | <3分 |
| 焦距公差 | ±2% |
| 通光孔径 | >90% |
| 倒角 | 保护性<0.5mmx45° |
| 镀膜 | 无，AR，HR，PR，etc. |
| 型号 | 材料 | 直径(mm) | 焦距(mm) | 曲率半径(mm) | 中心厚度(mm) | 边缘厚度(mm) | 后焦距(mm) |
| PCXD6F12 | N-BK7 | 6 | 12 | 6.22 | 2.27 | 1.5 | 10.5 |
| PCXD6F30 | N-BK7 | 6 | 30 | 15.56 | 1.79 | 1.5 | 28.82 |
| PCXD10F15 | N-BK7 | 10 | 15 | 7.78 | 3.8 | 2 | 12.5 |
| PCXD10F22 | N-BK7 | 10 | 22 | 11.4 | 3.1 | 1.9 | 20 |
| PCXD12.7F20 | N-BK7 | 12.7 | 20 | 10.37 | 3.97 | 1.8 | 17.39 |
| PCXD12.7F25 | N-BK7 | 12.7 | 25 | 12.94 | 3.47 | 1.8 | 22.67 |
| PCXD12.7F30 | N-BK7 | 12.7 | 30 | 15.56 | 3.16 | 1.8 | 27.92 |
| PCXD12.7F40 | N-BK7 | 12.7 | 40 | 20.75 | 2.8 | 1.8 | 38.16 |
| PCXD12.7F50 | N-BK7 | 12.7 | 50 | 25.94 | 2.59 | 1.8 | 48.3 |
| PCXD12.7F75 | N-BK7 | 12.7 | 75 | 38.9 | 2.32 | 1.8 | 73.47 |
| PCXD12.7F100 | N-BK7 | 12.7 | 100 | 51.88 | 2.19 | 1.8 | 98.57 |
| PCXD25.4F25 | N-BK7 | 25.4 | 25 | 13.18 | 11.65 | 2 | 17.74 |
| PCXD25.4F30 | N-BK7 | 25.4 | 30 | 15.56 | 8.57 | 2 | 24.35 |
| PCXD25.4F40 | N-BK7 | 25.4 | 40 | 20.75 | 6.35 | 2 | 35.82 |
| PCXD25.4F50 | N-BK7 | 25.4 | 50 | 25.94 | 5.32 | 2 | 46.51 |
| PCXD25.4F60 | N-BK7 | 25.4 | 60 | 31.12 | 4.72 | 2 | 56.89 |
| PCXD25.4F75 | N-BK7 | 25.4 | 75 | 38.9 | 4.13 | 2 | 72.27 |
| PCXD25.4F100 | N-BK7 | 25.4 | 100 | 51.88 | 3.58 | 2 | 97.66 |
| PCXD25.4F125 | N-BK7 | 25.4 | 125 | 64.86 | 3.27 | 2 | 122.89 |
| PCXD25.4F150 | N-BK7 | 25.4 | 150 | 77.8 | 3.04 | 2 | 147.98 |
| PCXD25.4F175 | N-BK7 | 25.4 | 175 | 90.78 | 2.89 | 2 | 173.1 |
| PCXD25.4F200 | N-BK7 | 25.4 | 200 | 103.75 | 2.78 | 2 | 198.18 |
| PCXD25.4F300 | N-BK7 | 25.4 | 300 | 155.6 | 2.52 | 2 | 298.31 |
| PCXD25.4F400 | N-BK7 | 25.4 | 400 | 207 | 2.39 | 2 | 397.49 |
| PCXD25.4F500 | N-BK7 | 25.4 | 500 | 259.4 | 2.31 | 2 | 498.56 |
| PCXD30F50 | N-BK7 | 30 | 50 | 25.94 | 7.28 | 2.5 | 45.21 |
| PCXD30F75 | N-BK7 | 30 | 75 | 38.9 | 5.51 | 2.5 | 71.36 |
| PCXD30F100 | N-BK7 | 30 | 100 | 51.88 | 4.72 | 2.5 | 96.91 |
| PCXD30F150 | N-BK7 | 30 | 150 | 77.8 | 3.96 | 2.5 | 147.38 |
| PCXD38F50 | N-BK7 | 38 | 50 | 25.92 | 11.3 | 3 | 42.6 |
| PCXD38F75 | N-BK7 | 38 | 75 | 38.87 | 8 | 3 | 69.7 |
| PCXD38F100 | N-BK7 | 38 | 100 | 51.83 | 6.6 | 3 | 95.7 |
| PCXD38F150 | N-BK7 | 38 | 150 | 77.75 | 5.3 | 3 | 146.5 |
| PCXD38F200 | N-BK7 | 38 | 200 | 103.66 | 4.8 | 3 | 196.5 |
| PCXD38F350 | N-BK7 | 38 | 350 | 181.41 | 4 | 3 | 347.4 |
| PCXD38F500 | N-BK7 | 38 | 500 | 259.15 | 3.7 | 3 | 497.6 |
| PCXD50.8F100 | N-BK7 | 50.8 | 100 | 51.88 | 9.64 | 3 | 93.67 |
| PCXD50.8F125 | N-BK7 | 50.8 | 125 | 64.86 | 8.18 | 3 | 119.65 |
| PCXD50.8F150 | N-BK7 | 50.8 | 150 | 77.8 | 7.26 | 3 | 145.2 |
| PCXD50.8F200 | N-BK7 | 50.8 | 200 | 103.75 | 6.16 | 3 | 195.96 |
| PCXD50.8F500 | N-BK7 | 50.8 | 500 | 259.4 | 4.25 | 3 | 497.28 |
| PCXD50.8F750 | N-BK7 | 50.8 | 750 | 389 | 3.83 | 3 | 747.4 |
| PCXD25.4F35-FS | UVFS | 25.4 | 35 | 16.1 | 8.2 | 2 | 29.4 |
| PCXD25.4F40-FS | UVFS | 25.4 | 40 | 18.4 | 7.1 | 2 | 35.1 |
| PCXD25.4F50-FS | UVFS | 25.4 | 50 | 23 | 5.8 | 2 | 46 |
| PCXD25.4F60-FS | UVFS | 25.4 | 60 | 27.6 | 5.1 | 2 | 56.5 |
| PCXD25.4F75-FS | UVFS | 25.4 | 75 | 34.51 | 4.4 | 2 | 72 |
| PCXD25.4F100-FS | UVFS | 25.4 | 100 | 46.01 | 3.8 | 2 | 97.4 |
| PCXD25.4F125-FS | UVFS | 25.4 | 125 | 57.51 | 3.4 | 2 | 122.7 |
| PCXD25.4F150-FS | UVFS | 25.4 | 150 | 69.01 | 3.2 | 2 | 147.8 |
| PCXD25.4F200-FS | UVFS | 25.4 | 200 | 92.02 | 2.9 | 2 | 198 |
| PCXD25.4F250-FS | UVFS | 25.4 | 250 | 115.02 | 2.7 | 2 | 248.2 |
| PCXD25.4F300-FS | UVFS | 25.4 | 300 | 138.02 | 2.6 | 2 | 298.2 |
| PCXD25.4F500-FS | UVFS | 25.4 | 500 | 230.4 | 2.4 | 2 | 498.4 |
| PCXD25.4F1000-FS | UVFS | 25.4 | 1000 | 460.08 | 2.2 | 2 | 998.5 |
| PCXD25.4F2000-FS | UVFS | 25.4 | 2000 | 920.16 | 2.1 | 2 | 1998.6 |
| PCXD25.4F5000-FS | UVFS | 25.4 | 5000 | 2300.4 | 2.1 | 2 | 4998.6 |
