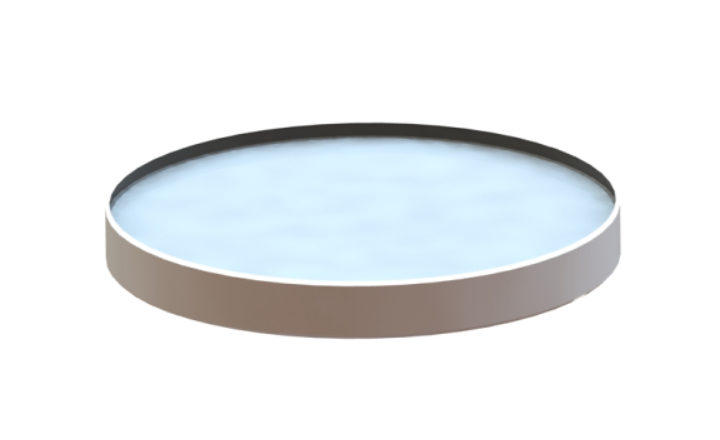

分光平片

产品优势

➣分光比值可选
➣可作为分束及合束
➣经济方便易夹持
➣尺寸和比值可定制

在线咨询

产品介绍

分光平片镜是将入射光按照一定比例分束，与入射光的波长和偏振状态无关。而偏振平板分束器则设计用来区分S和P偏光。我们的平板分束器前表面镀有决定分束比例的分束膜，而后表面为楔形面和增透膜，减小鬼影和干涉效应。镭星光电可以根据客户需要定制尺寸或可选的反射/透射率，更多细节请联络我们的专业的销售团队。

技术参数

材料	H-K9L、紫外熔石英
尺寸公差	+0.0/-0.2mm
厚度公差	±0.2mm
通光孔径	>90%
平行	<1分
表面质量	60/40
面型	<λ/4@633nm每25mm
倒角	保护性<0.5mmx45°
透反比	50/50±5%,for natural light T=(Ts+Tp)/2, R=(Rs+Rp)/2
镀膜(AOI=45deg)	S1:Partial reflectance coating S2:AR coating@设计波长
损伤阈值	>1J/cm2, 20ns, 20Hz, @1064nm

标准规格

型号	材料	直径(mm)	厚度 (mm)	透反比(%)	使用波长(nm)	入射角 (°)	设计偏振
BSP12-T20-450-650	BK7	12.7	3	20:80±5%	450-650	45	AVG
BSP12-T30-450-650	BK7	12.7	3	30:70±5%	450-650	45	AVG
BSP12-T40-450-650	BK7	12.7	3	40:60±5%	450-650	45	AVG
BSP12-T50-450-650	BK7	12.7	3	50:50±5%	450-650	45	AVG
BSP12-T60-450-650	BK7	12.7	3	60:40±5%	450-650	45	AVG
BSP12-T70-450-650	BK7	12.7	3	70:30±5%	450-650	45	AVG
BSP12-T80-450-650	BK7	12.7	3	80:20±5%	450-650	45	AVG
BSP12-T20-650-900	BK7	12.7	3	20:80±5%	650-900	45	AVG
BSP12-T30-650-900	BK7	12.7	3	30:70±5%	650-900	45	AVG
BSP12-T40-650-900	BK7	12.7	3	40:60±5%	650-900	45	AVG
BSP12-T50-650-900	BK7	12.7	3	50:50±5%	650-900	45	AVG
BSP12-T60-650-900	BK7	12.7	3	60:40±5%	650-900	45	AVG
BSP12-T70-650-900	BK7	12.7	3	70:30±5%	650-900	45	AVG
BSP12-T80-650-900	BK7	12.7	3	80:20±5%	650-900	45	AVG
BSP12-T20-900-1200	BK7	12.7	3	20:80±5%	900-1200	45	AVG
BSP12-T30-900-1200	BK7	12.7	3	30:70±5%	900-1200	45	AVG
BSP12-T40-900-1200	BK7	12.7	3	40:60±5%	900-1200	45	AVG
BSP12-T50-900-1200	BK7	12.7	3	50:50±5%	900-1200	45	AVG
BSP12-T60-900-1200	BK7	12.7	3	60:40±5%	900-1200	45	AVG
BSP12-T70-900-1200	BK7	12.7	3	70:30±5%	900-1200	45	AVG
BSP12-T80-900-1200	BK7	12.7	3	80:20±5%	900-1200	45	AVG
BSP25-T20-450-650	BK7	25.4	3	20:80±5%	450-650	45	AVG
BSP25-T30-450-650	BK7	25.4	3	30:70±5%	450-650	45	AVG
BSP25-T40-450-650	BK7	25.4	3	40:60±5%	450-650	45	AVG
BSP25-T50-450-650	BK7	25.4	3	50:50±5%	450-650	45	AVG
BSP25-T60-450-650	BK7	25.4	3	60:40±5%	450-650	45	AVG
BSP25-T70-450-650	BK7	25.4	3	70:30±5%	450-650	45	AVG
BSP25-T80-450-650	BK7	25.4	3	80:20±5%	450-650	45	AVG
BSP25-T20-650-900	BK7	25.4	3	20:80±5%	650-900	45	AVG
BSP25-T30-650-900	BK7	25.4	3	30:70±5%	650-900	45	AVG
BSP25-T40-650-900	BK7	25.4	3	40:60±5%	650-900	45	AVG
BSP25-T50-650-900	BK7	25.4	3	50:50±5%	650-900	45	AVG
BSP25-T60-650-900	BK7	25.4	3	60:40±5%	650-900	45	AVG
BSP25-T70-650-900	BK7	25.4	3	70:30±5%	650-900	45	AVG
BSP25-T80-650-900	BK7	25.4	3	80:20±5%	650-900	45	AVG
BSP25-T20-900-1200	BK7	25.4	3	20:80±5%	900-1200	45	AVG
BSP25-T30-900-1200	BK7	25.4	3	30:70±5%	900-1200	45	AVG
BSP25-T40-900-1200	BK7	25.4	3	40:60±5%	900-1200	45	AVG
BSP25-T50-900-1200	BK7	25.4	3	50:50±5%	900-1200	45	AVG
BSP25-T60-900-1200	BK7	25.4	3	60:40±5%	900-1200	45	AVG
BSP25-T70-900-1200	BK7	25.4	3	70:30±5%	900-1200	45	AVG
BSP25-T80-900-1200	BK7	25.4	3	80:20±5%	900-1200	45	AVG
BSP50-T20-450-650	BK7	50.8	3	20:80±5%	450-650	45	AVG
BSP50-T30-450-650	BK7	50.8	3	30:70±5%	450-650	45	AVG
BSP50-T40-450-650	BK7	50.8	3	40:60±5%	450-650	45	AVG
BSP50-T50-450-650	BK7	50.8	3	50:50±5%	450-650	45	AVG
BSP50-T60-450-650	BK7	50.8	3	60:40±5%	450-650	45	AVG
BSP50-T70-450-650	BK7	50.8	3	70:30±5%	450-650	45	AVG
BSP50-T80-450-650	BK7	50.8	3	80:20±5%	450-650	45	AVG
BSP50-T20-650-900	BK7	50.8	3	20:80±5%	650-900	45	AVG
BSP50-T30-650-900	BK7	50.8	3	30:70±5%	650-900	45	AVG
BSP50-T40-650-900	BK7	50.8	3	40:60±5%	650-900	45	AVG
BSP50-T50-650-900	BK7	50.8	3	50:50±5%	650-900	45	AVG
BSP50-T60-650-900	BK7	50.8	3	60:40±5%	650-900	45	AVG
BSP50-T70-650-900	BK7	50.8	3	70:30±5%	650-900	45	AVG
BSP50-T80-650-900	BK7	50.8	3	80:20±5%	650-900	45	AVG
BSP50-T20-900-1200	BK7	50.8	3	20:80±5%	900-1200	45	AVG
BSP50-T30-900-1200	BK7	50.8	3	30:70±5%	900-1200	45	AVG
BSP50-T40-900-1200	BK7	50.8	3	40:60±5%	900-1200	45	AVG
BSP50-T50-900-1200	BK7	50.8	3	50:50±5%	900-1200	45	AVG
BSP50-T60-900-1200	BK7	50.8	3	60:40±5%	900-1200	45	AVG
BSP50-T70-900-1200	BK7	50.8	3	70:30±5%	900-1200	45	AVG
BSP50-T80-900-1200	BK7	50.8	3	80:20±5%	900-1200	45	AVG
