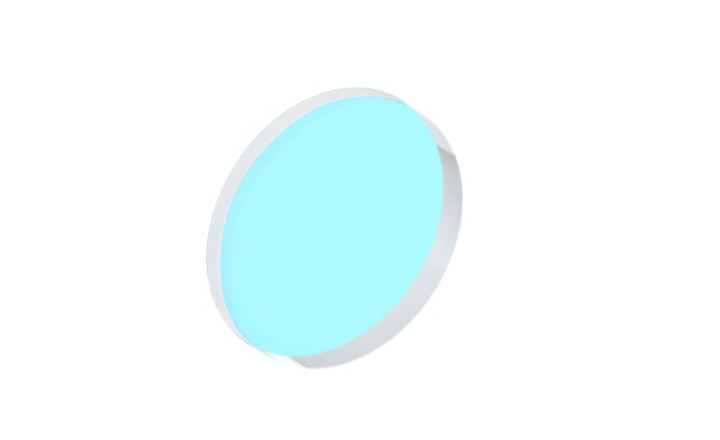

Nd:YAG输出镜输出镜就是将一部分激光能量返回谐振腔，而将另一部分能量输出谐振腔，保证激光功率和输出模式。在这光学谐振腔内，非轴向传播的单色光谱被排出谐振腔外,轴向传播的单色光谱在腔内往返传播并输出。
| 材料 | H-K9L |  |
| 尺寸公差 | +0.0/-0.2mm | |
| 厚度公差 | ±0.2mm | |
| 表面质量 | 60/40 | |
| 通光孔径 | >90% | |
| 面型 | <λ/4@632.8nm@每25mm | |
| 倒角 | 保护性<0.5mmx45° | |
| 镀膜 | 一面镀部分反射膜，反面镀增透膜 | |
| 损伤阈值 | >5J/cm2,20ns,20Hz,@1064nm |
| 型号 | 材料 | 直径 (mm) | 厚度 (mm) | 透过率(%) | 波长 (nm) | 入射角 (°) |
| OMIRD12T3-T95-1064 | BK7 | 12.7 | 3 | 95±2 | 1064 | 0 |
| OMIRD12T3-T90-1064 | BK7 | 12.7 | 3 | 90±3 | 1064 | 0 |
| OMIRD12T3-T80-1064 | BK7 | 12.7 | 3 | 80±4 | 1064 | 0 |
| OMIRD12T3-T70-1064 | BK7 | 12.7 | 3 | 70±5 | 1064 | 0 |
| OMIRD12T3-T50-1064 | BK7 | 12.7 | 3 | 50±5 | 1064 | 0 |
| OMIRD12T3-T40-1064 | BK7 | 12.7 | 3 | 40±5 | 1064 | 0 |
| OMIRD12T3-T30-1064 | BK7 | 12.7 | 3 | 30±5 | 1064 | 0 |
| OMIRD12T3-T20-1064 | BK7 | 12.7 | 3 | 20±5 | 1064 | 0 |
| OMIRD12T3-T15-1064 | BK7 | 12.7 | 3 | 15±4 | 1064 | 0 |
| OMIRD12T3-T10-1064 | BK7 | 12.7 | 3 | 10±3 | 1064 | 0 |
| OMIRD12T3-T5-1064 | BK7 | 12.7 | 3 | 5±2 | 1064 | 0 |
| OMIRD12T3-T2-1064 | BK7 | 12.7 | 3 | 2±1 | 1064 | 0 |
| OMIRD20T5-T95-1064 | BK7 | 20 | 5 | 95±2 | 1064 | 0 |
| OMIRD20T5-T90-1064 | BK7 | 20 | 5 | 90±3 | 1064 | 0 |
| OMIRD20T5-T80-1064 | BK7 | 20 | 5 | 80±4 | 1064 | 0 |
| OMIRD20T5-T70-1064 | BK7 | 20 | 5 | 70±5 | 1064 | 0 |
| OMIRD20T5-T50-1064 | BK7 | 20 | 5 | 50±5 | 1064 | 0 |
| OMIRD20T5-T40-1064 | BK7 | 20 | 5 | 40±5 | 1064 | 0 |
| OMIRD20T5-T30-1064 | BK7 | 20 | 5 | 30±5 | 1064 | 0 |
| OMIRD20T5-T20-1064 | BK7 | 20 | 5 | 20±5 | 1064 | 0 |
| OMIRD20T5-T15-1064 | BK7 | 20 | 5 | 15±4 | 1064 | 0 |
| OMIRD20T5-T10-1064 | BK7 | 20 | 5 | 10±3 | 1064 | 0 |
| OMIRD20T5-T5-1064 | BK7 | 20 | 5 | 5±2 | 1064 | 0 |
| OMIRD20T5-T2-1064 | BK7 | 20 | 5 | 2±1 | 1064 | 0 |
| OMIRD25T6-T95-1064 | BK7 | 25.4 | 6.35 | 95±2 | 1064 | 0 |
| OMIRD25T6-T90-1064 | BK7 | 25.4 | 6.35 | 90±3 | 1064 | 0 |
| OMIRD25T6-T80-1064 | BK7 | 25.4 | 6.35 | 80±4 | 1064 | 0 |
| OMIRD25T6-T70-1064 | BK7 | 25.4 | 6.35 | 70±5 | 1064 | 0 |
| OMIRD25T6-T50-1064 | BK7 | 25.4 | 6.35 | 50±5 | 1064 | 0 |
| OMIRD25T6-T40-1064 | BK7 | 25.4 | 6.35 | 40±5 | 1064 | 0 |
| OMIRD25T6-T30-1064 | BK7 | 25.4 | 6.35 | 30±5 | 1064 | 0 |
| OMIRD25T6-T20-1064 | BK7 | 25.4 | 6.35 | 20±5 | 1064 | 0 |
| OMIRD25T6-T15-1064 | BK7 | 25.4 | 6.35 | 15±4 | 1064 | 0 |
| OMIRD25T6-T10-1064 | BK7 | 25.4 | 6.35 | 10±3 | 1064 | 0 |
| OMIRD25T6-T5-1064 | BK7 | 25.4 | 6.35 | 5±2 | 1064 | 0 |
| OMIRD25T6-T2-1064 | BK7 | 25.4 | 6.35 | 2±1 | 1064 | 0 |
