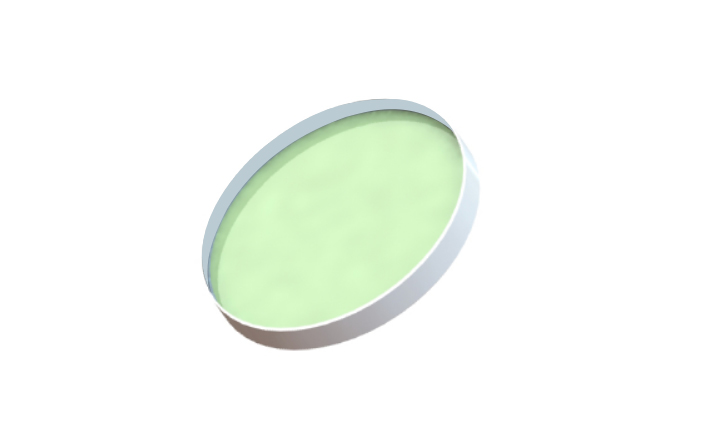

宽带介质反射镜产品可应用于某一段的使用波长，相较普通的反射镜，它们拥有更宽的反射带。选用合适的反射镀膜选项将能确保所需波长或波长范围获得高反射率。
| 材料 | H-K9L, 紫外融石英 |
| 尺寸公差 | +0/-0.2mm |
| 厚度公差 | ±0.2mm |
| 通光孔径 | >90% |
| 表面质量 | 60/40 sctrach and dig |
| 面形 | <λ/10@633nm@每25mm |
| 倒角 | 保护性 <0.5mmx45deg |
| 镀膜 | 单面镀宽带介质膜, 随机偏振R> 99.5％，AOI = 0-45° 后表面研磨或检查抛光 |
| 损伤阈值 | >1J/cm2, 20ns, 20Hz, @1064nm |
| 型号 | 材料 | 直径 (mm) | 厚度 (mm) | 使用波长 (nm) | 入射角 (°) |
| BMIRD12.7T3-350-400 | BK7 | 12.7 | 3.0 | 350-400 | 0-45 |
| BMIRD25.4T6.35-350-400 | BK7 | 25.4 | 6.35 | 350-400 | 0-45 |
| BMIRD50.8T6.35-350-400 | BK7 | 50.8 | 6.35 | 350-400 | 0-45 |
| BMIRD12.7T3-400-750 | BK7 | 12.7 | 3.0 | 400-750 | 0-45 |
| BMIRD25.4T6.35-400-750 | BK7 | 25.4 | 6.35 | 400-750 | 0-45 |
| BMIRD50.8T6.35-400-750 | BK7 | 50.8 | 6.35 | 400-750 | 0-45 |
| BMIRD12.7T3-750-1100 | BK7 | 12.7 | 3.0 | 750-1100 | 0-45 |
| BMIRD25.4T6.35-750-1100 | BK7 | 25.4 | 6.35 | 750-1100 | 0-45 |
| BMIRD50.8T6.35-750-1100 | BK7 | 50.8 | 6.35 | 750-1100 | 0-45 |
| BMIRD12.7T3-1280-1600 | BK7 | 12.7 | 3.0 | 1280-1600 | 0-45 |
| BMIRD25.4T6.35-1280-1600 | BK7 | 25.4 | 6.35 | 1280-1600 | 0-45 |
| BMIRD50.8T6.35-1280-1600 | BK7 | 50.8 | 6.35 | 1280-1600 | 0-45 |
| BMIRD12.7T3-670-905 | BK7 | 12.7 | 3.0 | 670-905 | 0-45 |
| BMIRD25.4T6.35-670-905 | BK7 | 25.4 | 6.35 | 670-905 | 0-45 |
| BMIRD50.8T6.35-670-905 | BK7 | 50.8 | 6.35 | 670-905 | 0-45 |
| BMIRD12.7T3-1480-1550 | BK7 | 12.7 | 3.0 | 1480-1550 | 0-45 |
| BMIRD25.4T6.35-1480-1550 | BK7 | 25.4 | 6.35 | 1480-1550 | 0-45 |
| BMIRD50.8T6.35-1480-1550 | BK7 | 50.8 | 6.35 | 1480-1550 | 0-45 |
