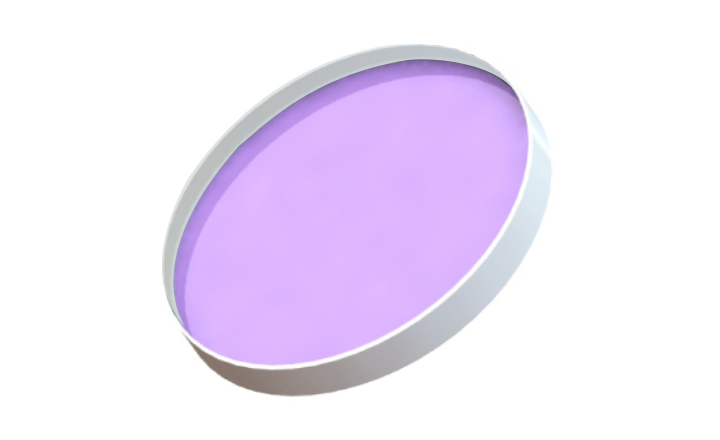

反射镜设计用于反射各种应用波长的光线，包括光束偏移、干涉测量、成像或照明。镭星光电可以根据客户的需要来定制各种反射膜系，介质膜反射率高，可应用于高功率激光。
| 材料 | H-K9L，紫外融石英 |
| 尺寸公差 | +0.0/-0.2mm |
| 厚度公差 | ±0.2mm |
| 通光孔径 | >90% |
| 表面质量 | 60/40 sctrach and dig |
| 面形 | <λ/10@633nm@每25mm |
| 倒角 | 保护性<0.2mmx45deg |
| 镀膜 | 一面镀介质高反膜，R>99.5%，反面细磨或者检测抛光 |
| 损伤阈值 | >5J/cm2, 20ns, 20Hz, @1064nm |
| 型号 | 材料 | 直径(mm) | 厚度(mm) | 使用波长(nm) | 入射角(°) |
| LMIRD12.7T3-260-270-0 | BK7 | 12.7 | 3.0 | 260-270 | 0 |
| LMIRD12.7T3-260-270-45 | BK7 | 12.7 | 3.0 | 260-270 | 45 |
| LMIRD12.7T3-350-360-0 | BK7 | 12.7 | 3.0 | 350-360 | 0 |
| LMIRD12.7T3-350-360-45 | BK7 | 12.7 | 3.0 | 350-360 | 45 |
| LMIRD12.7T3-397-405-0 | BK7 | 12.7 | 3.0 | 397-405 | 0 |
| LMIRD12.7T3-397-405-45 | BK7 | 12.7 | 3.0 | 397-405 | 45 |
| LMIRD12.7T3-488-515-0 | BK7 | 12.7 | 3.0 | 488-515 | 0 |
| LMIRD12.7T3-488-515-45 | BK7 | 12.7 | 3.0 | 488-515 | 45 |
| LMIRD12.7T3-527-532-0 | BK7 | 12.7 | 3.0 | 527-532 | 0 |
| LMIRD12.7T3-527-532-45 | BK7 | 12.7 | 3.0 | 527-532 | 45 |
| LMIRD12.7T3-633-660-0 | BK7 | 12.7 | 3.0 | 633-660 | 0 |
| LMIRD12.7T3-633-660-45 | BK7 | 12.7 | 3.0 | 633-660 | 45 |
| LMIRD12.7T3-780-0 | BK7 | 12.7 | 3.0 | 780 | 0 |
| LMIRD12.7T3-780-45 | BK7 | 12.7 | 3.0 | 780 | 45 |
| LMIRD12.7T3-850-0 | BK7 | 12.7 | 3.0 | 850 | 0 |
| LMIRD12.7T3-850-45 | BK7 | 12.7 | 3.0 | 850 | 45 |
| LMIRD12.7T3-1028-1030-0 | BK7 | 12.7 | 3.0 | 1028-1030 | 0 |
| LMIRD12.7T3-1028-1030-45 | BK7 | 12.7 | 3.0 | 1028-1030 | 45 |
| LMIRD12.7T3-1047-1064-0 | BK7 | 12.7 | 3.0 | 1047-1064 | 0 |
| LMIRD12.7T3-1047-1064-0 | BK7 | 12.7 | 3.0 | 1047-1064 | 45 |
| LMIRD12.7T3-1310-0 | BK7 | 12.7 | 3.0 | 1310 | 0 |
| LMIRD12.7T3-1310-45 | BK7 | 12.7 | 3.0 | 1310 | 45 |
| LMIRD12.7T3-1520-1570-0 | BK7 | 12.7 | 3.0 | 1520-1570 | 0 |
| LMIRD12.7T3-1520-1570-0 | BK7 | 12.7 | 3.0 | 1520-1570 | 45 |
| LMIRD20T5-260-270-0 | BK7 | 20.0 | 5.0 | 260-270 | 0 |
| LMIRD20T5-260-270-45 | BK7 | 20.0 | 5.0 | 260-270 | 45 |
| LMIRD20T5-350-360-0 | BK7 | 20.0 | 5.0 | 350-360 | 0 |
| LMIRD20T5-350-360-45 | BK7 | 20.0 | 5.0 | 350-360 | 45 |
| LMIRD20T5-397-405-0 | BK7 | 20.0 | 5.0 | 397-405 | 0 |
| LMIRD20T5-397-405-45 | BK7 | 20.0 | 5.0 | 397-405 | 45 |
| LMIRD20T5-488-515-0 | BK7 | 20.0 | 5.0 | 488-515 | 0 |
| LMIRD20T5-488-515-45 | BK7 | 20.0 | 5.0 | 488-515 | 45 |
| LMIRD20T5-527-532-0 | BK7 | 20.0 | 5.0 | 527-532 | 0 |
| LMIRD20T5-527-532-45 | BK7 | 20.0 | 5.0 | 527-532 | 45 |
| LMIRD20T5-633-660-0 | BK7 | 20.0 | 5.0 | 633-660 | 0 |
| LMIRD20T5-633-660-45 | BK7 | 20.0 | 5.0 | 633-660 | 45 |
| LMIRD20T5-780-0 | BK7 | 20.0 | 5.0 | 780 | 0 |
| LMIRD20T5-780-45 | BK7 | 20.0 | 5.0 | 780 | 45 |
| LMIRD20T5-850-0 | BK7 | 20.0 | 5.0 | 850 | 0 |
