Product advantages

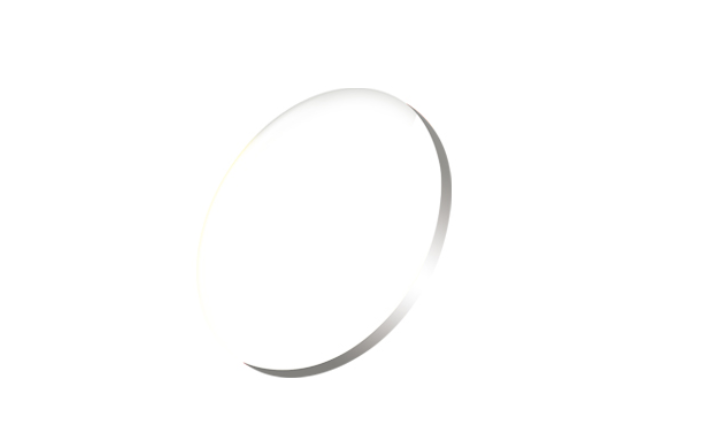

➣Made of quartz, 200-2500nm
➣Up to 100mm diameter
➣Custom rotation angle available
➣RoHS Compliant
| Material | Crystal Quartz 200-2500nm |
| Dimension Tolerance | ±0.2mm |
| Rotation Accuracy | <5 arc minutes |
| Parallelism | <10 arc seconds |
| Wavefront Distortion | λ/4@632.8nm |
| Surface Quality | 20/10 scratch and dig |
| Rotation | clockwise and counter-clockwise |
| Coating | AR coating available, R<0.25%@central wavelength |
| Part Number | Dimension (mm) | Thickness (mm) | Design Wavelength (mm) | Rotation (°) | Direction | AR coating (nm) |
| ROT12-355-45 | 12.7 | 0.7 | 355 | 45 | Clockwise | 355 |
| ROT25-355-45 | 25.4 | 0.7 | 355 | 45 | Clockwise | 355 |
| ROT12-355-90 | 12.7 | 1.4 | 355 | 90 | Clockwise | 355 |
| ROT25-355-90 | 25.4 | 1.4 | 355 | 90 | Clockwise | 355 |
| ROT12-532-45 | 12.7 | 1.7 | 532 | 45 | Clockwise | 532 |
| ROT25-532-45 | 25.4 | 1.7 | 532 | 45 | Clockwise | 532 |
| ROT12-532-90 | 12.7 | 3.4 | 532 | 90 | Clockwise | 532 |
| ROT25-532-90 | 25.4 | 3.4 | 532 | 90 | Clockwise | 532 |
| ROT12-633-45 | 12.7 | 2.4 | 633 | 45 | Clockwise | 633 |
| ROT25-633-45 | 25.4 | 2.4 | 633 | 45 | Clockwise | 633 |
| ROT12-633-90 | 12.7 | 4.8 | 633 | 90 | Clockwise | 633 |
| ROT25-633-90 | 25.4 | 4.8 | 633 | 90 | Clockwise | 633 |
| ROT12-1053-45 | 12.7 | 7 | 1053 | 45 | Clockwise | 1053 |
| ROT25-1053-45 | 25.4 | 7 | 1053 | 45 | Clockwise | 1053 |
| ROT12-1053-90 | 12.7 | 14 | 1053 | 90 | Clockwise | 1053 |
| ROT25-1053-90 | 25.4 | 14 | 1053 | 90 | Clockwise | 1053 |
| ROT12-1064-45 | 12.7 | 7.1 | 1064 | 45 | Clockwise | 1064 |
| ROT25-1064-45 | 25.4 | 7.1 | 1064 | 45 | Clockwise | 1064 |
| ROT12-1064-90 | 12.7 | 14.2 | 1064 | 90 | Clockwise | 1064 |
| ROT25-1064-90 | 25.4 | 14.2 | 1064 | 90 | Clockwise | 1064 |
