Product advantages
➣Standard Product
➣Image inverters
➣Optical delay lines

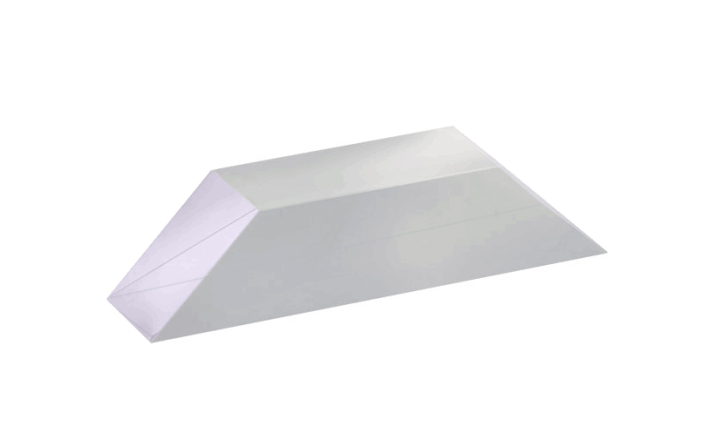

➣Dove prisms are offered as uncoated. Coatings are available upon request.
| Material | BK7 Grade A, Fused silica |
| Dimension tolerance | ±0.2mm |
| Surface quality | 60/40 scratch and dig |
| Clear aperture | >90% |
| Flatness | <λ/4@632.8nm |
| Angle tolerance | < 3 arc min |
| Chamfer | protective < 0.5mm x 45° |
| Coating | No, available |
| Part Number | Material | h (mm) | B (mm) | A (mm) |
| DOV0505 | BK7 | 5 | 5 | 21.1 |
| DOV1010 | BK7 | 10 | 10 | 42.3 |
| DOV1515 | BK7 | 15 | 15 | 63.4 |
| DOV2020 | BK7 | 20 | 20 | 80 |
