Product advantages
➣Standard Product 5*5-50.8*50.8mm（A*B）
➣Beam splitting and separation
➣Can be coated for polarization separation

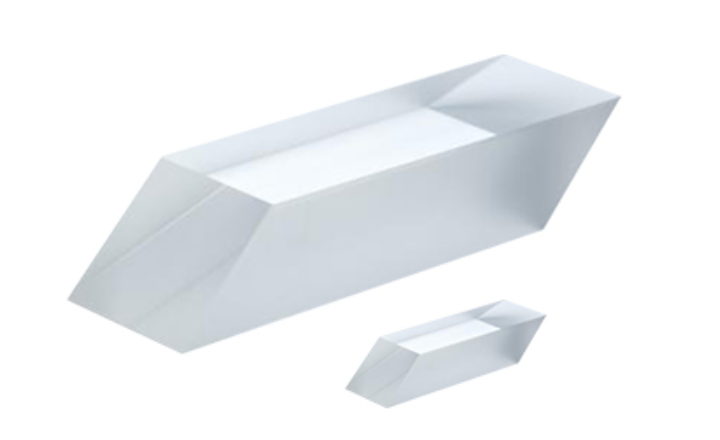

➣Rhombic Prisms are offered as uncoated. Coatings are available upon request
| Material | BK7 Grade A optical glass |
| Dimension Tolerance | ±0.2mm |
| Beam Deviation | Up to 30 arc seconds |
| Flatness | λ/4@632.8nm |
| Surface Quality | 60/40 scratch and dig |
| Clear Aperture | >90% |
| Coating | No, available |
| Part Number | Material | A (mm) | B (mm) | C (mm) | Deviation |
| RBP0505 | BK7 | 5 | 5 | 7.1 | 30 arc sec |
| RBP0305 | BK7 | 3.5 | 5 | 7.1 | 30 arc sec |
| RBP1010 | BK7 | 10 | 10 | 14.1 | 30 arc sec |
| RBP0710 | BK7 | 7.1 | 10 | 14.1 | 30 arc sec |
| RBP1212 | BK7 | 12.7 | 12.7 | 18 | 30 arc sec |
| RBP0912 | BK7 | 9 | 12.7 | 18 | 30 arc sec |
| RBP2020 | BK7 | 20 | 20 | 28.3 | 30 arc sec |
| RBP1420 | BK7 | 14.1 | 20 | 28.3 | 30 arc sec |
| RBP2525 | BK7 | 25.4 | 25.4 | 35.9 | 30 arc sec |
| RBP1825 | BK7 | 18 | 25.4 | 35.9 | 30 arc sec |
