Product advantages
➣Wide Wavelength Range
➣Low Power Application
➣Broadband high extinction ratio
➣RoHS Compliant
| Material: | a-BBO、Calcite、YVO4、Quartz | |
| Wavelength Range: | a-BBO : 190～350 0Calcite: 350～2300 nm, | |
YVO 4 : 500～4000 nm, Quartz: 200～2300 nm, | ||
| Extinction Ratio: | a-BBO:<5x10-6 Calcite:<5x10-5 YVO4:<5x10-6 Quartz：<5x10-4 | |
| Surface Quality: | 20/10 | |
| Parallelism: | <1 arc Min | |
| Beam Deviation: | < 3 arc minutes | |
| Damage Threshold: | λ /4@633nm | |
| Damage Threshold: | >500 MW/cm2 | |
| Coating: | Single MgF2 | |
| Mount: | Black Anodized Aluminium | |

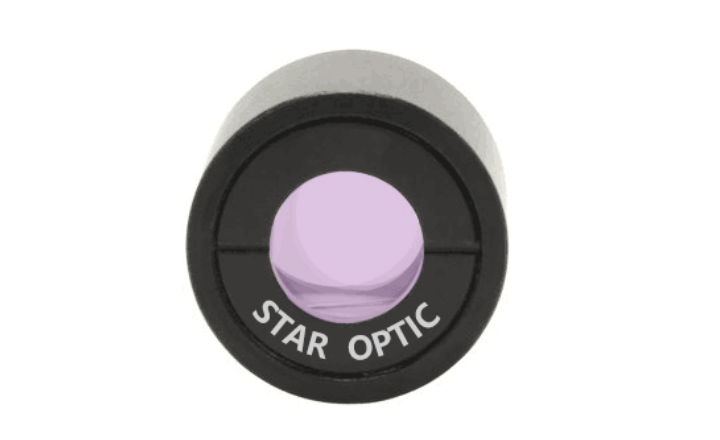

| 1.aa-BBO Wollaston Polarizer | ||||||
| Part No. | Wavelength Range | Extinction Ratio | Separation Angle | C.A.φa (mm) | O.D.φd (mm) | L (mm) |
| PWS1006 | 190～3500nm | <5x10-6 | 16° @800nm | 6 | 15 | 15 |
| PWS1008 | 8 | 25.4 | 17 | |||
| PWS1010 | 10 | 25.4 | 19 | |||
| PWS1015 | 15 | 30 | 23 | |||
| 2.Calcite Wollaston Polarizer | ||||||
| Part No. | Wavelength Range | Extinction Ratio | Separation Angle | C.A.φa (mm) | O.D.φd (mm) | L (mm) |
| PWS2006 | 350～2300nm | <5x10-5 | 19° @980nm | 6 | 15 | 15 |
| PWS2008 | 8 | 25.4 | 17 | |||
| PWS2010 | 10 | 25.4 | 19 | |||
| PWS2015 | 15 | 30 | 23 | |||
| PWS2020 | 20 | 38 | 29 | |||
| 3. Yvo4 Wollaston Polarizer | ||||||
| Part No. | Wavelength Range | Extinction Ratio | Separation Angle | C.A.φa (mm) | O.D.φd (mm) | L (mm) |
| PWS3006 | 400～4000nm | <5x10-6 | 20° @1550nm | 6 | 15 | 15 |
| PWS3008 | 8 | 25.4 | 17 | |||
| PWS3010 | 10 | 25.4 | 19 | |||
| PWS3015 | 15 | 30 | 23 | |||
| PWS3020 | 20 | 38 | 29 | |||
| 4.Quartz Wollaston Polarizer | ||||||
| Part No. | Wavelength Range | Extinction Ratio | Separation Angle | C.A.φa (mm) | O.D.φd (mm) | L (mm) |
| PWS4006 | 200～2300nm | <5x10-4 | 2° @1064nm | 6 | 15 | 20 |
| PWS4008 | 8 | 25.4 | 24 | |||
| PWS4010 | 10 | 25.4 | 28 | |||
| PWS4015 | 15 | 30 | 38 | |||
| PWS4020 | 20 | 38 | 48 | |||
