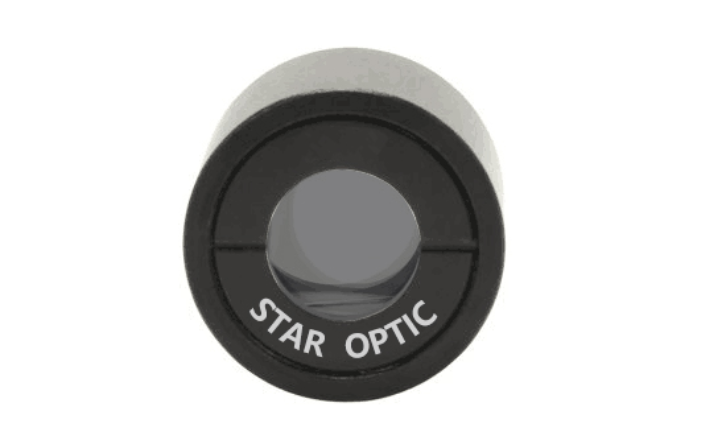

Product advantages
➣Air-spaced
➣Close to Brewster's Angle Cutting
➣High Polarization Purity
➣Short Length
➣Wide Wavelength Range
➣Suitable for low to medium power applicatio
| Material: | a-BBO, Calcite or YVO 4 |
| Wavelength Range: | BBO:200～3500 nm, Calcite:350～2300 nm, YVO4:500～4000 nm |
| Extinction Ratio: | Calcite:<5x10-5 ; a-BBO:<5x10-6 ; YVO 4 :<5x10-6 |
| Surface Quality: | 10/20 |
| Parallelism: | <1 arc Min |
| Beam Deviation: | < 3 arc minutes |
| Wavefront Distortion: | λ /4@633nm |
| Damage Threshold: | >200 MW/cm2 |
| Coating: | Single MgF2 |
| Mount: | Black Anodized Aluminium |
| 1.a-BBO Glan Taylor Polarizer | ||||||
| Part No. | Wavelength Range | Extinction Ratio | Angular Field | C.A. φa (mm) | O.D. φd (mm) | L (mm) |
| PGT1206 | 200-270nm | <5x10-6 | >6.0° | 6 | 15 | 15 |
| PGT1208 | 8 | 25.4 | 17 | |||
| PGT1210 | 10 | 25.4 | 19 | |||
| PGT1212 | 12.7 | 25.4 | 21 | |||
| PGT1215 | 15 | 30 | 23 | |||
| PGT1306 | 300-700nm | <5x10-6 | >6.0° | 6 | 15 | 15 |
| PGT1308 | 8 | 25.4 | 17 | |||
| PGT1310 | 10 | 25.4 | 19 | |||
| PGT1312 | 12 | 25.4 | 21 | |||
| PGT1315 | 15 | 30 | 23 | |||
| PGT1320 | 20 | 38 | 29 | |||
| PGT1706 | 700-3000nm | <5x10-6 | >6.0° | 6 | 15 | 15 |
| PGT1708 | 8 | 25.4 | 17 | |||
| PGT1710 | 10 | 25.4 | 19 | |||
| PGT1712 | 12 | 25.4 | 21 | |||
| PGT1715 | 15 | 30 | 23 | |||
| PGT1720 | 20 | 38 | 29 | |||
| 2. Calcite Glan Taylor Polarizer | ||||||
| Part No. | Wavelength Range | Extinction Ratio | Angular Field | C.A. φa (mm) | O.D. φd (mm) | L (mm) |
| PGT2006 | 350～2300nm | <5x10-6 | ＞7.7° | 6 | 15 | 15 |
| PGT2008 | 8 | 25.4 | 17 | |||
| PGT2010 | 10 | 25.4 | 19 | |||
| PGT2012 | 12.7 | 25.4 | 21 | |||
| PGT2015 | 15 | 30 | 23 | |||
| PGT2020 | 20 | 38 | 29 | |||
| 3.Yvo4 Glan Taylor Polarizer | ||||||
| Part No. | Wavelength Range | Extinction Ratio | Angular Field | C.A. φa (mm) | O.D. φd (mm) | L (mm) |
| PGT3006 | 500-4000nm | <5x10-6 | >6.5° | 6 | 15 | 12 |
| PGT3008 | 8 | 25.4 | 12 | |||
| PGT3010 | 10 | 25.4 | 17 | |||
| PGT3012 | 12.7 | 25.4 | 19 | |||
| PGT3015 | 15 | 30 | 20 | |||
| PGT3020 | 20 | 38 | 25 | |||
