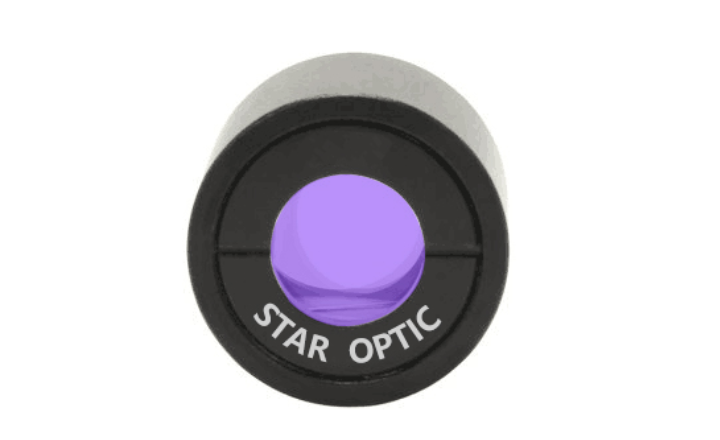

Product advantages
➣Air-spaced
➣Close to Brewster's Angle Cutting
➣High Polarization Purity
➣Short Length
➣Wide Wavelength Range
➣Suitable for medium power application
| Material: | a-BBO, Calcite or YVO 4 |
| Wavelength Range: | BBO:200～3500 nm, Calcite:350～2300 nm, YVO4:500～4000 nm |
| Extinction Ratio: | Calcite:<5x10-5 ; a-BBO:<5x10-6 ; YVO 4 :<5x10-6 |
| Surface Quality: | 20/10 |
| Parallelism: | <1 arc Min |
| Beam Deviation: | < 3 arc minutes |
| Wavefront Distortion: | λ /4@633nm |
| Damage Threshold: | >500 MW/cm2 |
| Coating: | Single MgF2 |
| Mount: | Black Anodized Aluminium |
| 1.a-BBO Glan Laser Polarizer | ||||||
| Part No. | Wavelength Range | Extinction Ratio | Angular Field | C.A. φa (mm) | O.D. φd (mm) | L (mm) |
| PGL1206 | 200-300nm | <5x10-6 | >6.0° | 6 | 15 | 29 |
| PGL1208 | 8 | 25.4 | 31 | |||
| PGL1210 | 10 | 25.4 | 31 | |||
| PGL1212 | 12.7 | 25.4 | 38.6 | |||
| PGL1215 | 15 | 30 | 48.9 | |||
| PGL1306 | 300-700nm | <5x10-6 | >6.0° | 6 | 15 | 25 |
| PGL1308 | 8 | 25.4 | 25 | |||
| PGL1310 | 10 | 25.4 | 26 | |||
| PGL1312 | 12 | 25.4 | 27 | |||
| PGL1315 | 15 | 30 | 33.4 | |||
| PGL1320 | 20 | 38 | 43.6 | |||
| PGL1706 | 700-3000nm | <5x10-6 | >6.0° | 6 | 15 | 23 |
| PGL1708 | 8 | 25.4 | 24.7 | |||
| PGL1710 | 10 | 25.4 | 25.9 | |||
| PGL1712 | 12 | 25.4 | 27 | |||
| PGL1715 | 15 | 30 | 33.4 | |||
| PGL1720 | 20 | 38 | 43.6 | |||
| 2. Calcite Glan Laser Polarizer | ||||||
| Part No. | Wavelength Range | Extinction Ratio | Angular Field | C.A. φa (mm) | O.D. φd (mm) | L (mm) |
| PGL2006 | 350～2300nm | <5x10-5 | ＞7.7° | 6 | 15 | 21 |
| PGL2008 | 8 | 25.4 | 24.5 | |||
| PGL2010 | 10 | 25.4 | 26.2 | |||
| PGL2012 | 12.7 | 25.4 | 27.5 | |||
| PGL2015 | 15 | 30 | 33.3 | |||
| PGL2020 | 20 | 38 | 42.3 | |||
| 3. Yvo4 Glan Laser Polarizer | ||||||
| Part No. | Wavelength Range | Extinction Ratio | Angular Field | C.A. φa (mm) | O.D. φd (mm) | L (mm) |
| PGL3006 | 500-4000nm | <5x10-6 | >6.5° | 6 | 15 | 18 |
| PGL3008 | 8 | 25.4 | 20 | |||
| PGL3010 | 10 | 25.4 | 23 | |||
| PGL3012 | 12.7 | 25.4 | 25 | |||
| PGL3015 | 15 | 30 | 26 | |||
| PGL3020 | 20 | 38 | 29 | |||
