| Material | BK7 |
| Dimension tolerance | +0.0/-0.2mm |
| Thickness tolerance | ±0.2mm |
| Surface Quality | 60/40 |
| Clear Aperture | >90% |
| Flatness | <λ/4@632.8nm per 25mm range |
| Chamfer | Protective<0.5mmx45° |

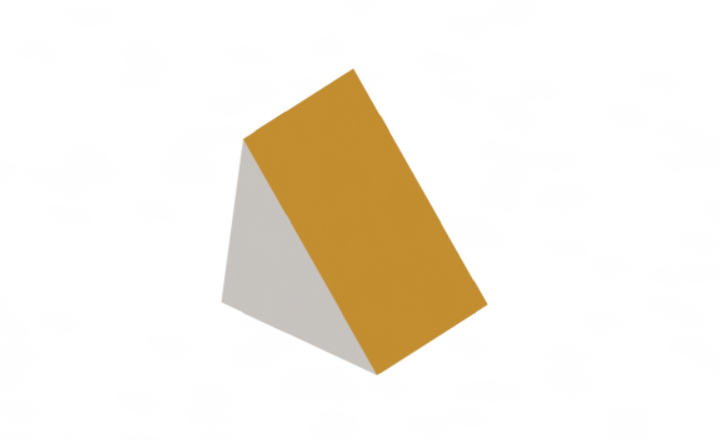

| Coating | Metal HR coating on hypotenuse, two legs inspection polished |
| Damage threshold | >1J/cm2,20ns,20Hz,@1064nm |
| Part Number | Material | A (mm) | B (mm) | C (mm) | Coating on Hypo surface |
| RMIR0505-EAL | BK7 | 5 | 5 | 7.1 | Enhanced Aluminum |
| RMIR1010-EAL | BK7 | 10 | 10 | 14.1 | Enhanced Aluminum |
| RMIR1212-EAL | BK7 | 12.7 | 12.7 | 18 | Enhanced Aluminum |
| RMIR1515-EAL | BK7 | 15 | 15 | 21.2 | Enhanced Aluminum |
| RMIR2020-EAL | BK7 | 20 | 20 | 28.3 | Enhanced Aluminum |
| RMIR2525-EAL | BK7 | 25.4 | 25.4 | 35.9 | Enhanced Aluminum |
| RMIR3030-EAL | BK7 | 30 | 30 | 42.4 | Enhanced Aluminum |
| RMIR3838-EAL | BK7 | 38.1 | 38.1 | 53.9 | Enhanced Aluminum |
| RMIR5050-EAL | BK7 | 50.8 | 50.8 | 71.8 | Enhanced Aluminum |
| RMIR0505-PAL | BK7 | 5 | 5 | 7.1 | Protected Aluminum |
| RMIR1010-PAL | BK7 | 10 | 10 | 14.1 | Protected Aluminum |
| RMIR1212-PAL | BK7 | 12.7 | 12.7 | 18 | Protected Aluminum |
| RMIR1515-PAL | BK7 | 15 | 15 | 21.2 | Protected Aluminum |
| RMIR2020-PAL | BK7 | 20 | 20 | 28.3 | Protected Aluminum |
| RMIR2525-PAL | BK7 | 25.4 | 25.4 | 35.9 | Protected Aluminum |
| RMIR3030-PAL | BK7 | 30 | 30 | 42.4 | Protected Aluminum |
| RMIR3838-PAL | BK7 | 38.1 | 38.1 | 53.9 | Protected Aluminum |
| RMIR5050-PAL | BK7 | 50.8 | 50.8 | 71.8 | Protected Aluminum |
| RMIR0505-PAG | BK7 | 5 | 5 | 7.1 | Protected Silver |
| RMIR1010-PAG | BK7 | 10 | 10 | 14.1 | Protected Silver |
| RMIR1212-PAG | BK7 | 12.7 | 12.7 | 18 | Protected Silver |
| RMIR1515-PAG | BK7 | 15 | 15 | 21.2 | Protected Silver |
| RMIR2020-PAG | BK7 | 20 | 20 | 28.3 | Protected Silver |
| RMIR2525-PAG | BK7 | 25.4 | 25.4 | 35.9 | Protected Silver |
| RMIR3030-PAG | BK7 | 30 | 30 | 42.4 | Protected Silver |
| RMIR3838-PAG | BK7 | 38.1 | 38.1 | 53.9 | Protected Silver |
| RMIR5050-PAG | BK7 | 50.8 | 50.8 | 71.8 | Protected Silve |
| RMIR0505-PAU | BK7 | 5 | 5 | 7.1 | Protected Gold |
| RMIR1010-PAU | BK7 | 10 | 10 | 14.1 | Protected Gold |
| RMIR1212-PAU | BK7 | 12.7 | 12.7 | 18 | Protected Gold |
| RMIR1515-PAU | BK7 | 15 | 15 | 21.2 | Protected Gold |
| RMIR2020-PAU | BK7 | 20 | 20 | 28.3 | Protected Gold |
| RMIR2525-PAU | BK7 | 25.4 | 25.4 | 35.9 | Protected Gold |
| RMIR3030-PAU | BK7 | 30 | 30 | 42.4 | Protected Gold |
| RMIR3838-PAU | BK7 | 38.1 | 38.1 | 53.9 | Protected Gold |
| RMIR5050-PAU | BK7 | 50.8 | 50.8 | 71.8 | Protected Gold |
