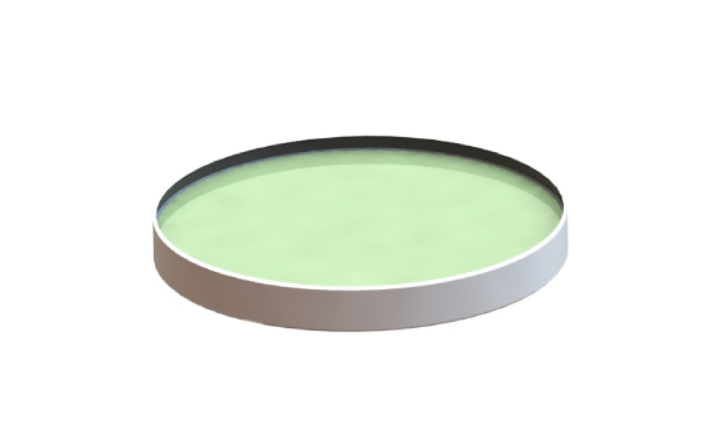

Beamsplitter Plate

Product advantages

Consultation

Product Introduction

Technical Parameter

Material	BK7 Grade A，UVFS
Dimension Tolerance	+0.0/-0.2mm
Thickness Tolerance	±0.2mm
Clear Aperture	>90%
Parallelism	<1 arc minute
Surface Quality	60/40
Flatness	<λ/4@633nm per 25mm
Chamfer	Protected<0.5mmx45deg
T/R	50/50±5%,for natural light T=(Ts+Tp)/2, R=(Rs+Rp)/2
Coating(AOI=45deg)	S1:Partial reflectance coating S2:AR coating
Damage Threshold	>1J/cm2, 20ns, 20Hz, @1064nm

Standard Specification

Part Number	Material	Diameter (mm)	Thickness (mm)	T/R (%)	Wavelength (nm)	AOI (°)	Polarization
BSP12-T20-450-650	BK7	12.7	3	20:80±5%	450-650	45	AVG
BSP12-T30-450-650	BK7	12.7	3	30:70±5%	450-650	45	AVG
BSP12-T40-450-650	BK7	12.7	3	40:60±5%	450-650	45	AVG
BSP12-T50-450-650	BK7	12.7	3	50:50±5%	450-650	45	AVG
BSP12-T60-450-650	BK7	12.7	3	60:40±5%	450-650	45	AVG
BSP12-T70-450-650	BK7	12.7	3	70:30±5%	450-650	45	AVG
BSP12-T80-450-650	BK7	12.7	3	80:20±5%	450-650	45	AVG
BSP12-T20-650-900	BK7	12.7	3	20:80±5%	650-900	45	AVG
BSP12-T30-650-900	BK7	12.7	3	30:70±5%	650-900	45	AVG
BSP12-T40-650-900	BK7	12.7	3	40:60±5%	650-900	45	AVG
BSP12-T50-650-900	BK7	12.7	3	50:50±5%	650-900	45	AVG
BSP12-T60-650-900	BK7	12.7	3	60:40±5%	650-900	45	AVG
BSP12-T70-650-900	BK7	12.7	3	70:30±5%	650-900	45	AVG
BSP12-T80-650-900	BK7	12.7	3	80:20±5%	650-900	45	AVG
BSP12-T20-900-1200	BK7	12.7	3	20:80±5%	900-1200	45	AVG
BSP12-T30-900-1200	BK7	12.7	3	30:70±5%	900-1200	45	AVG
BSP12-T40-900-1200	BK7	12.7	3	40:60±5%	900-1200	45	AVG
BSP12-T50-900-1200	BK7	12.7	3	50:50±5%	900-1200	45	AVG
BSP12-T60-900-1200	BK7	12.7	3	60:40±5%	900-1200	45	AVG
BSP12-T70-900-1200	BK7	12.7	3	70:30±5%	900-1200	45	AVG
BSP12-T80-900-1200	BK7	12.7	3	80:20±5%	900-1200	45	AVG
BSP25-T20-450-650	BK7	25.4	3	20:80±5%	450-650	45	AVG
BSP25-T30-450-650	BK7	25.4	3	30:70±5%	450-650	45	AVG
BSP25-T40-450-650	BK7	25.4	3	40:60±5%	450-650	45	AVG
BSP25-T50-450-650	BK7	25.4	3	50:50±5%	450-650	45	AVG
BSP25-T60-450-650	BK7	25.4	3	60:40±5%	450-650	45	AVG
BSP25-T70-450-650	BK7	25.4	3	70:30±5%	450-650	45	AVG
BSP25-T80-450-650	BK7	25.4	3	80:20±5%	450-650	45	AVG
BSP25-T20-650-900	BK7	25.4	3	20:80±5%	650-900	45	AVG
BSP25-T30-650-900	BK7	25.4	3	30:70±5%	650-900	45	AVG
BSP25-T40-650-900	BK7	25.4	3	40:60±5%	650-900	45	AVG
BSP25-T50-650-900	BK7	25.4	3	50:50±5%	650-900	45	AVG
BSP25-T60-650-900	BK7	25.4	3	60:40±5%	650-900	45	AVG
BSP25-T70-650-900	BK7	25.4	3	70:30±5%	650-900	45	AVG
BSP25-T80-650-900	BK7	25.4	3	80:20±5%	650-900	45	AVG
BSP25-T20-900-1200	BK7	25.4	3	20:80±5%	900-1200	45	AVG
BSP25-T30-900-1200	BK7	25.4	3	30:70±5%	900-1200	45	AVG
BSP25-T40-900-1200	BK7	25.4	3	40:60±5%	900-1200	45	AVG
BSP25-T50-900-1200	BK7	25.4	3	50:50±5%	900-1200	45	AVG
BSP25-T60-900-1200	BK7	25.4	3	60:40±5%	900-1200	45	AVG
BSP25-T70-900-1200	BK7	25.4	3	70:30±5%	900-1200	45	AVG
BSP25-T80-900-1200	BK7	25.4	3	80:20±5%	900-1200	45	AVG
BSP50-T20-450-650	BK7	50.8	3	20:80±5%	450-650	45	AVG
BSP50-T30-450-650	BK7	50.8	3	30:70±5%	450-650	45	AVG
BSP50-T40-450-650	BK7	50.8	3	40:60±5%	450-650	45	AVG
BSP50-T50-450-650	BK7	50.8	3	50:50±5%	450-650	45	AVG
BSP50-T60-450-650	BK7	50.8	3	60:40±5%	450-650	45	AVG
BSP50-T70-450-650	BK7	50.8	3	70:30±5%	450-650	45	AVG
BSP50-T80-450-650	BK7	50.8	3	80:20±5%	450-650	45	AVG
BSP50-T20-650-900	BK7	50.8	3	20:80±5%	650-900	45	AVG
BSP50-T30-650-900	BK7	50.8	3	30:70±5%	650-900	45	AVG
BSP50-T40-650-900	BK7	50.8	3	40:60±5%	650-900	45	AVG
BSP50-T50-650-900	BK7	50.8	3	50:50±5%	650-900	45	AVG
BSP50-T60-650-900	BK7	50.8	3	60:40±5%	650-900	45	AVG
BSP50-T70-650-900	BK7	50.8	3	70:30±5%	650-900	45	AVG
BSP50-T80-650-900	BK7	50.8	3	80:20±5%	650-900	45	AVG
BSP50-T20-900-1200	BK7	50.8	3	20:80±5%	900-1200	45	AVG
BSP50-T30-900-1200	BK7	50.8	3	30:70±5%	900-1200	45	AVG
BSP50-T40-900-1200	BK7	50.8	3	40:60±5%	900-1200	45	AVG
BSP50-T50-900-1200	BK7	50.8	3	50:50±5%	900-1200	45	AVG
BSP50-T60-900-1200	BK7	50.8	3	60:40±5%	900-1200	45	AVG
BSP50-T70-900-1200	BK7	50.8	3	70:30±5%	900-1200	45	AVG
BSP50-T80-900-1200	BK7	50.8	3	80:20±5%	900-1200	45	AVG
